* High performance traction - Especially for mobile or stationary use with the highest requirements
* LiFePO4 200Ah lithium battery replaces a 300Ah lead battery - Thanks to maximum usable capacity
* Safest lithium (LiFePO4) technology - Lithium-iron-phosphate, no gas, no danger of explosion or fire. No need maintenance
* Long service life - Maximum service life with more than 3500 cycles up to 8000 cycles, even with regular deep discharge
* High discharge current - High discharge performance without voltage drop for large consumers such as coffee machines and air
conditioning systems
* Light weight - Up to 70% weight savings compared to lead-acid batteries
* Low automatic discharge - Stored/ unused, only about 3% per month
bybattshop

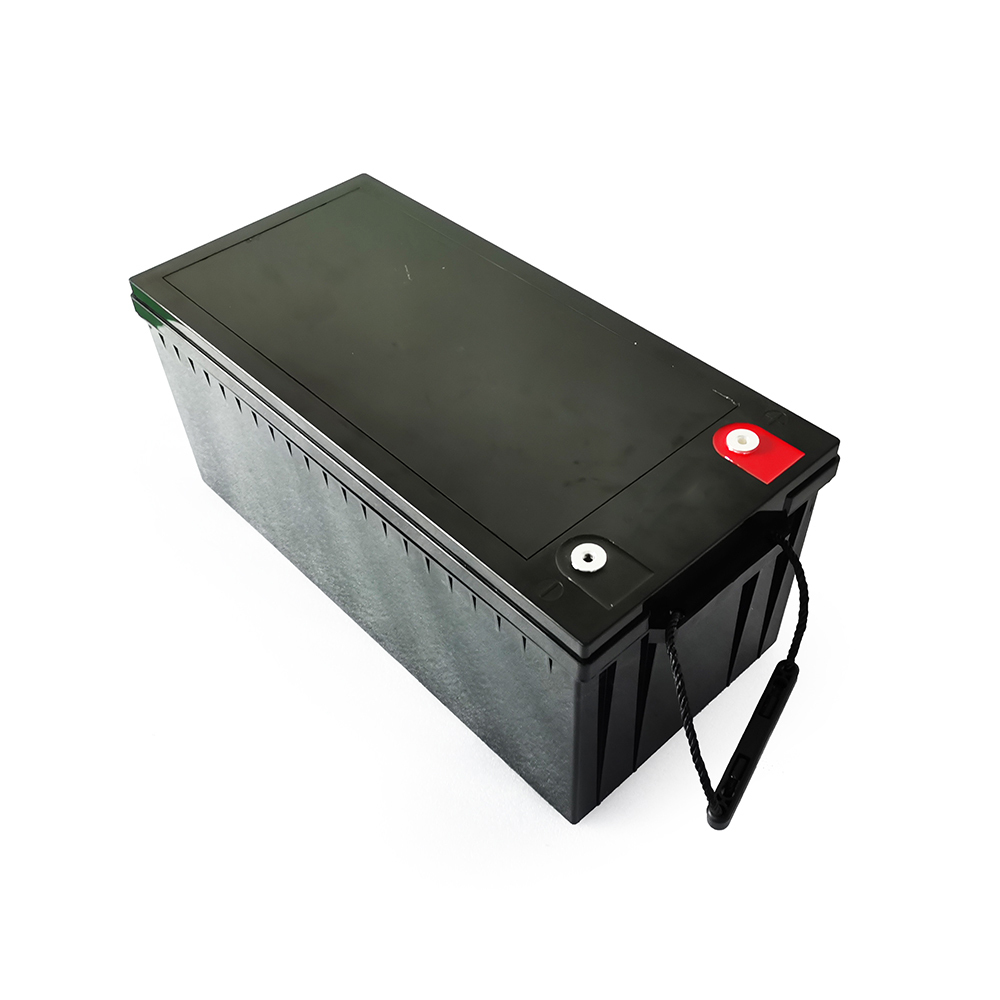

RV Battery 24V 100AH Lithium Ion LiFePO4 Battery Pack Lead Acid Camper Replacement Battery
stars, based on 0 reviews
Quantity
Price
2+
$400.00
10000+
$300.00
bybattshop
Product Characteristics:
Flexible Use:
* Motorhomes and caravans
* Photovoltaics, solar systems and renewable energies
* High performance traction
* Fishing, electric boat engines and depth sounders
* Emergency power supply and Uninterruptible power supply（UPS）
* Mobile homes and leisure
* Photovoltaics, solar systems and renewable energies
* High performance traction
* Fishing, electric boat engines and depth sounders
* Emergency power supply and Uninterruptible power supply（UPS）
* Mobile homes and leisure
BMS（Battery Management System）
It is an electronic system allowing the control and the charge of the different elements of a storage battery. The BMS built into each battery ensures that the battery is protected from improper handling. It switches the battery in case of undervoltage or overload, and turns on automatically as soon as the problem is fixed.
* Protection of the cell against undervoltage by cutting the load over time.
* Protection of the cell against overvoltages by reducing the charging current or by stopping the charging process.
* System shutdown in case of overheating.
* Battery charging is stopped at low temperature.
* Protection of the cell against overvoltages by reducing the charging current or by stopping the charging process.
* System shutdown in case of overheating.
* Battery charging is stopped at low temperature.

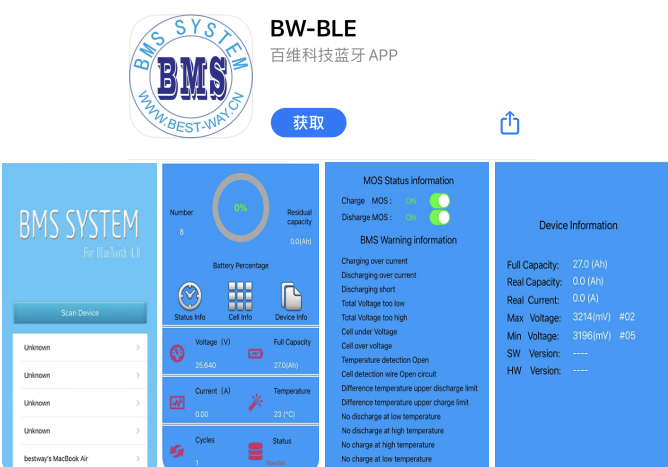

Support IOS and Android Phone APP Monitoring
Products Description
24V 100AH Lithium Ion LiFePO4 Battery | ||||||
Item | Specification | Note | ||||
Battery Pack | Nominal Voltage: | 24V(25.6V) | Support Customized 6.4V-96V | |||
Nominal Capacity: | 100AH | Any capacity can be customized | ||||
End of Discharge Voltage: | 20V | |||||
End of charge Voltage: | 29.2V | |||||
Max.Cont. Charge Current: | ≤100A | Free Customization Service | ||||
End of Charge Current: | 100mA | Free Customization Service | ||||
Nominal Discharge Current: | 100A(Safe) | Free Customization Service | ||||
Max. Pulse Discharge Current: | 150A(10S) | Free Customization Service | ||||
Internal Resistance: | ≤50mΩ | |||||
Operating Charge Temperature: | 0～45℃ | |||||
Operating Discharge Temperature: | -20～60℃ | |||||
Storage Temp.(60-80% SOC Storage): | -10～45℃ | |||||
Charge Method: | CC/CV | |||||
BMS: | Built in BMS | Support Customized Extra Function | ||||

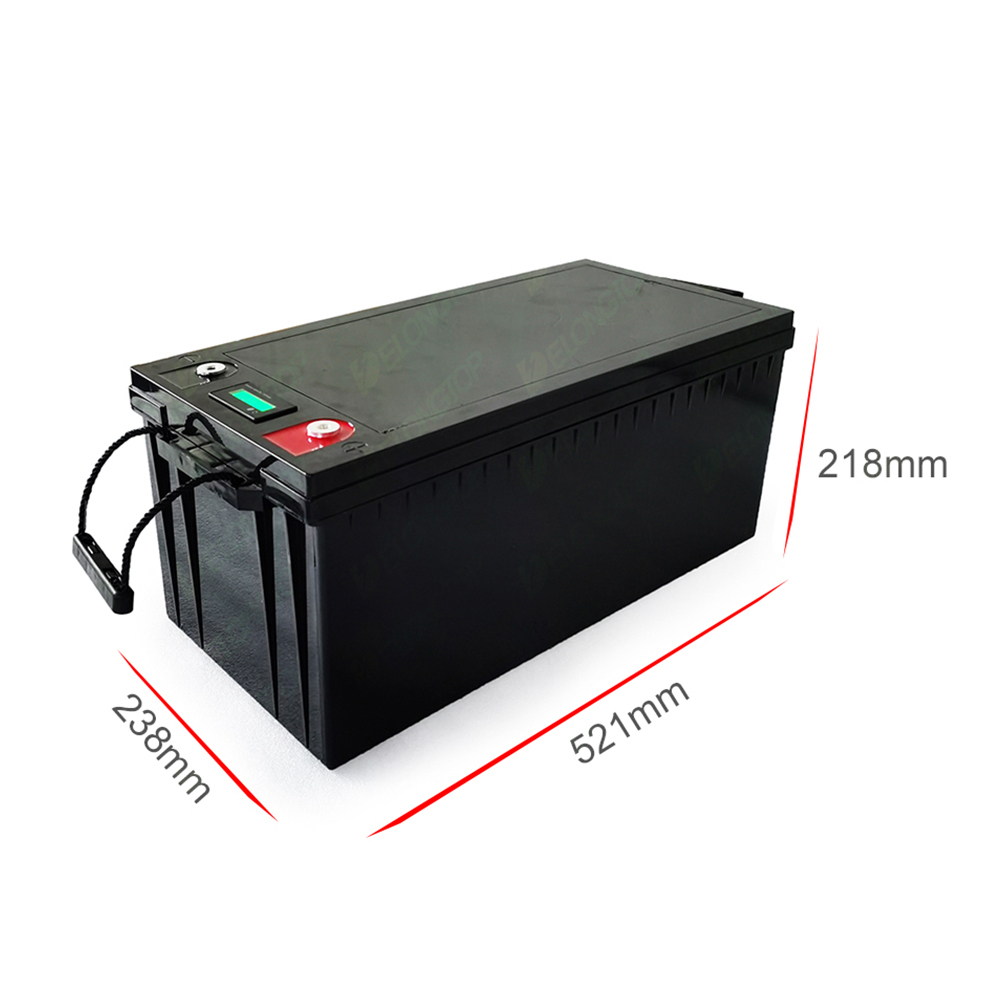

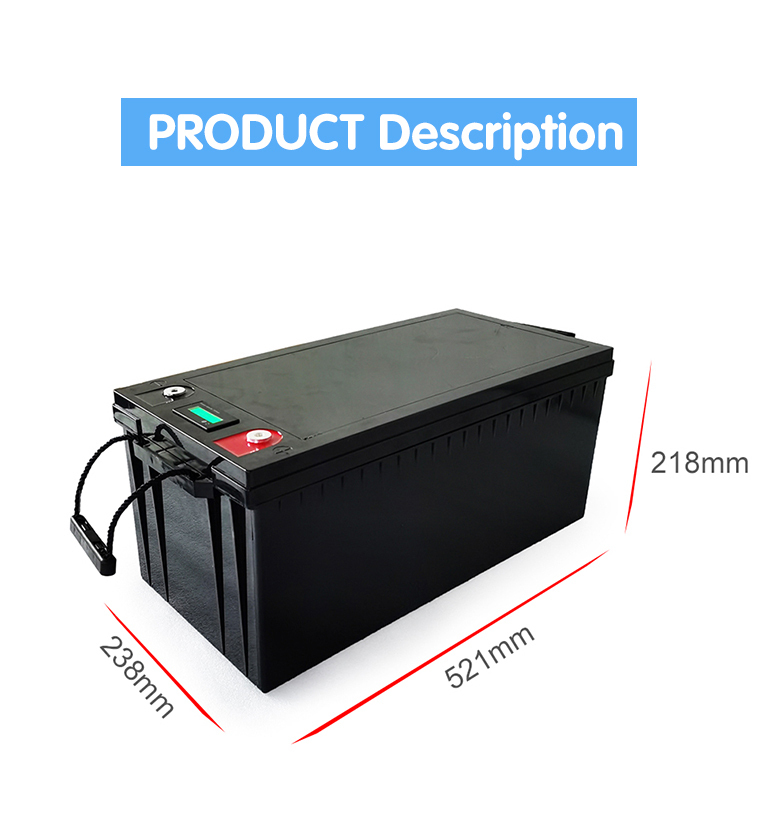

Dimension: | 521*238*218mm（L*W*H） | |||||
Weight: | ≈22KG | |||||
Cycle Life: | 6000+ | (Cycle @RT, 1C rate, 85%DOD) | ||||

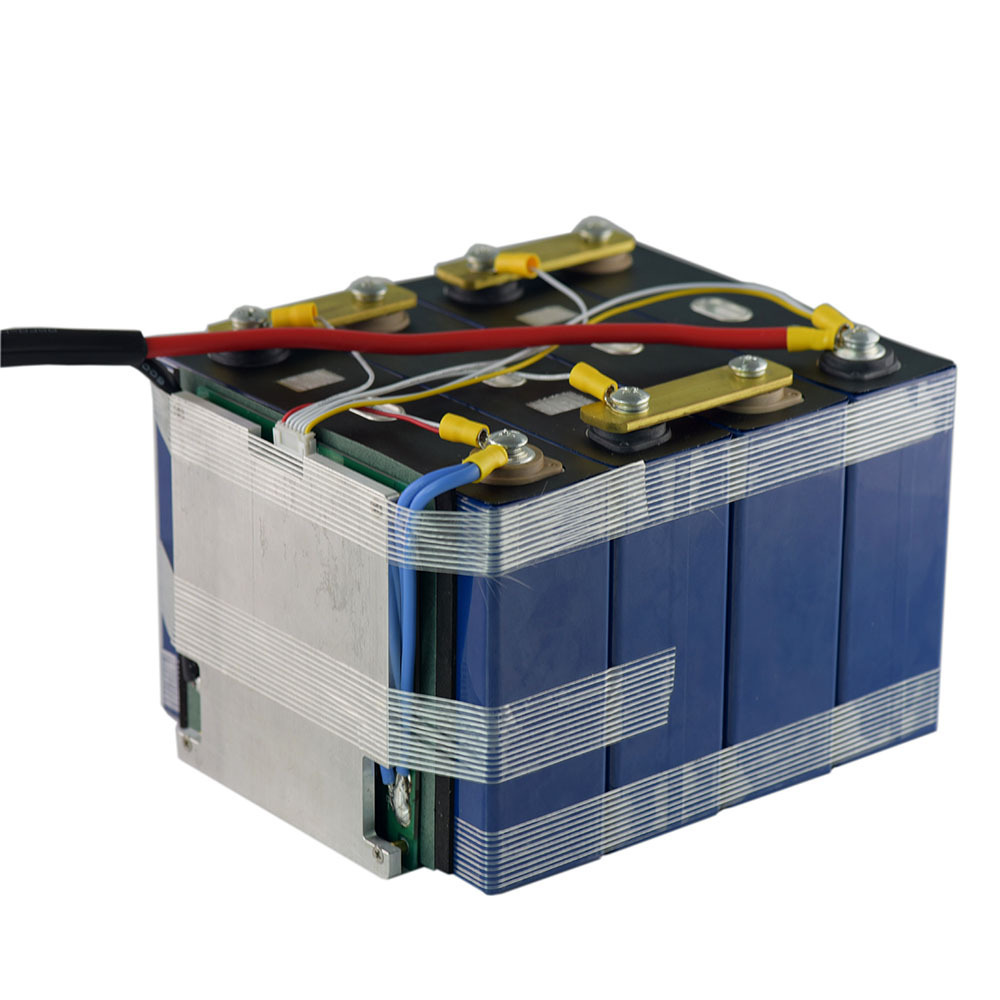

Battery Cell Used | Prismatic LiFePO4 Cell/ Pouch LiFePO4 Cell | 3.2V 50AH/ 100AH | 8S2P/ 8S1P | |||
BMS | Charge Protection, Over charge Protection, Over Discharge Protection, Short Circuit Protection | Support Customized Extra Function | ||||
LED Indicator | / | / | ||||
ABS Plastic Case | / | |||||
IP Grade: | IP65 | |||||

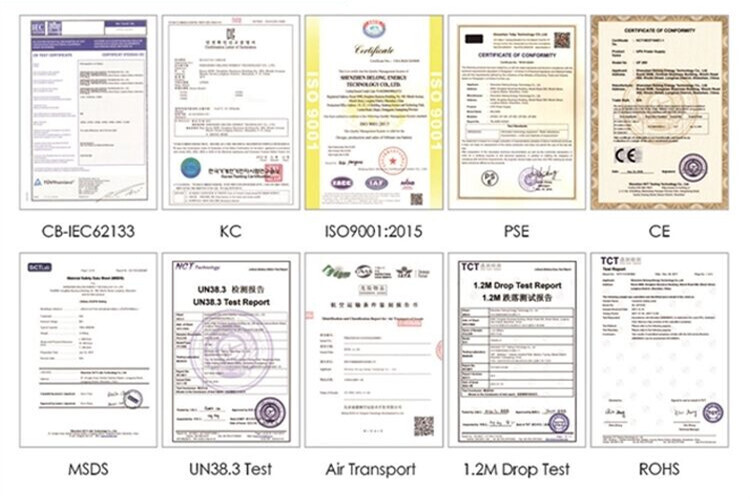

Certifications
About LiFePO4 Battery
Advantages:
Safety: LiFePO4 is the safest lithium-ion battery cathode material, not burning and explosion.
Environmental Protection: LiFePO4 does not contain any harmful heavy metal elements, pollution-free both in production and actual use.
Easy Installation: Our screw in bolt ports allow for easy and secure connectivity. Plug and Play.
Long Cycle Life: Can be charged and discharged more than 3500 times @ 85% DOD, 5000 times @ 60% DOD
Light Weight: LiFePO4 battery is lighter and smaller than Lead-acid battery/ Gel battery.
Protection: LiFePO4 batteries built in BMS it has over charge, over discharge, over temp, short circuit protection.

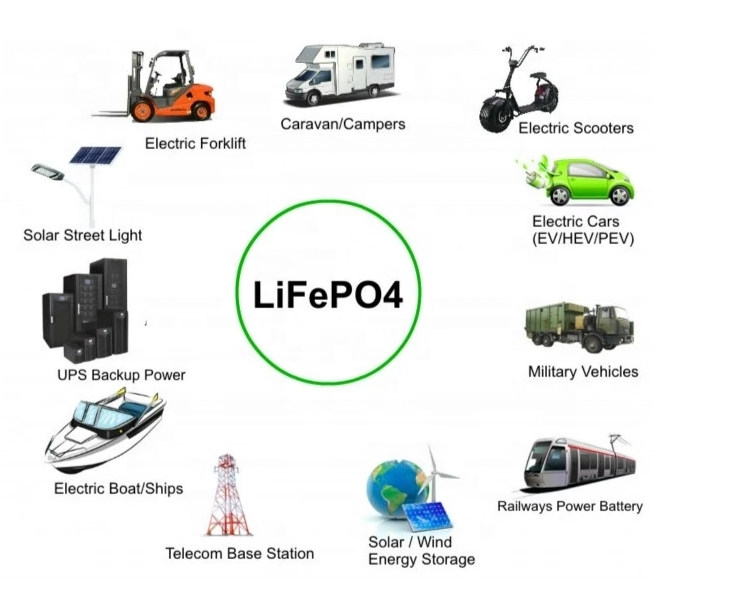

Widely Applications: LiFePO4 Battery supported replace lead acid battery/ gel/ GAM battery directly and widely use for solar energy storage system, solar street light, RV/ Camping car, Caravan, Submarine, golf cart, forklift, AGV, trolling motor, fishing kayak and so on
Easy Installation: Our screw in bolt ports allow for easy and secure connectivity. Plug and Play.
Long Cycle Life: Can be charged and discharged more than 3500 times @ 85% DOD, 5000 times @ 60% DOD
Light Weight: LiFePO4 battery is lighter and smaller than Lead-acid battery/ Gel battery.
Protection: LiFePO4 batteries built in BMS it has over charge, over discharge, over temp, short circuit protection.
Widely Applications: LiFePO4 Battery supported replace lead acid battery/ gel/ GAM battery directly and widely use for solar energy storage system, solar street light, RV/ Camping car, Caravan, Submarine, golf cart, forklift, AGV, trolling motor, fishing kayak and so on
- Model Number:
- 24100
- Battery Size:
- 521*238*218mm
- Place of Origin:
- Guangdong, China
- Weight:
- 22KG
- The charging ratio:
- 0.2C-0.5C
- The discharge rate:
- 0.5C-1C
- Storage Type:
- -10℃-45℃
- Anode Material:
- LFP
- Application:
- Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
- Product name:
- 24V 100AH Lithium Ion LiFePO4 Battery
- Energy Wh:
- 25.6V 100AH 2560Wh
- Nominal Capacity:
- 100AH
- Nominal Voltage:
- 25.6V
- Battery type:
- Prismatic 3.2V 100Ah Lifepo4 battery cells
- Composed Type:
- 8S1P with BMS 100A
- BMS:
- 100A
- Charge full cutting-off Voltage:
- 29.2V
- Discharge cutting-off Voltage:
- 20V
- Cycle life:
- More than 6000 times
