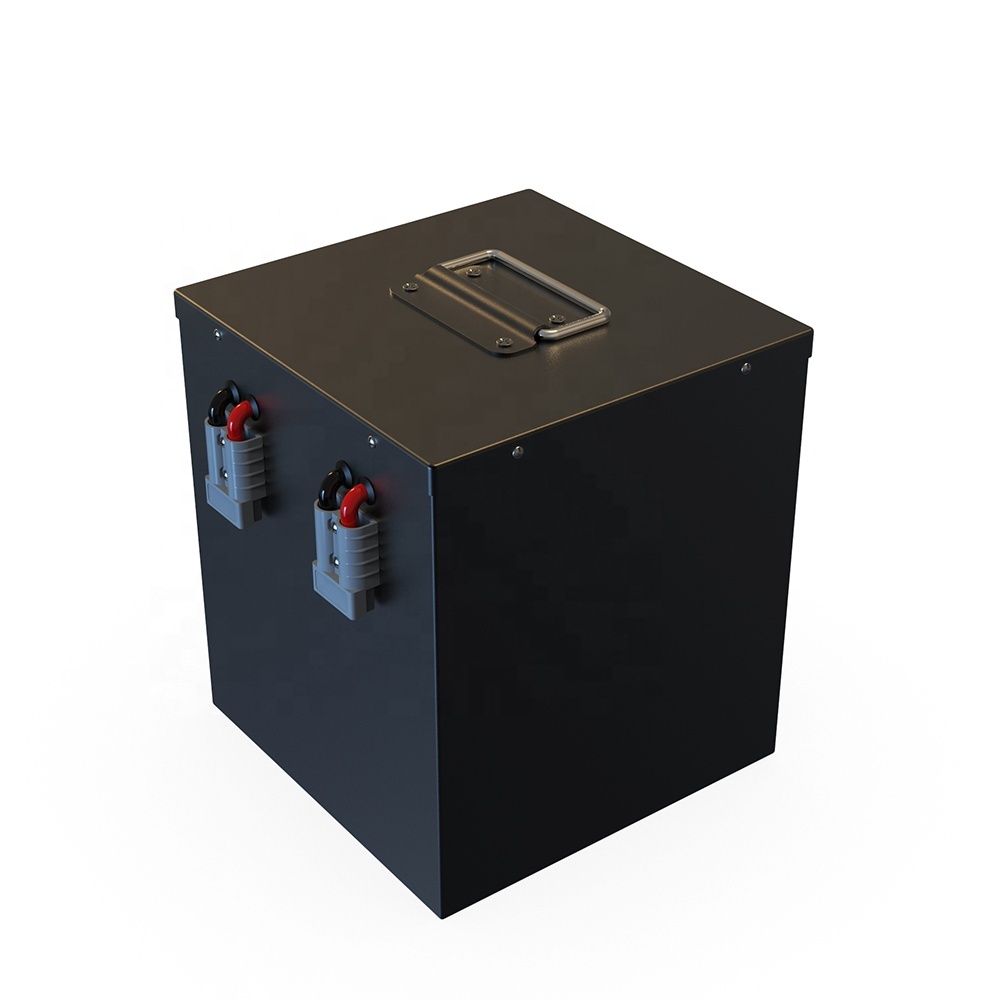

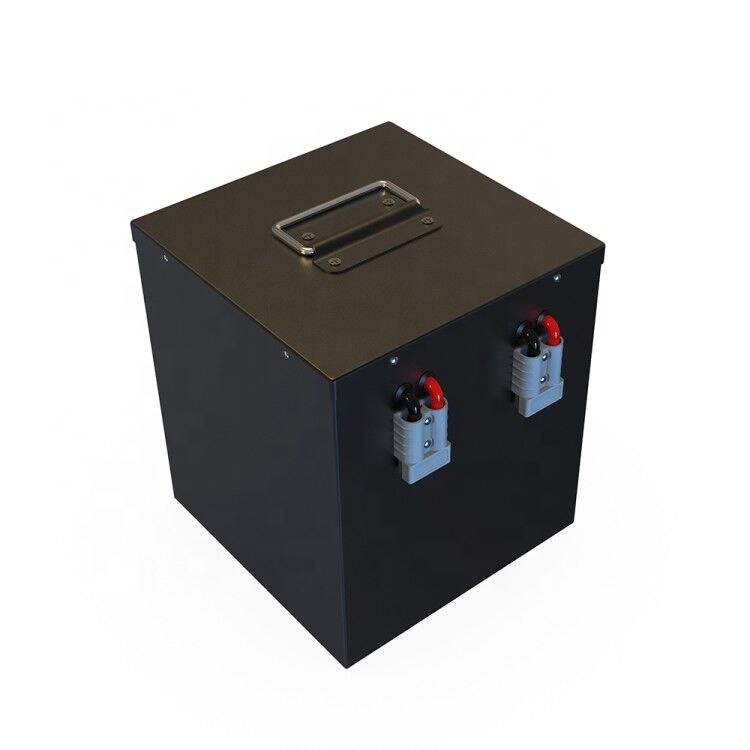

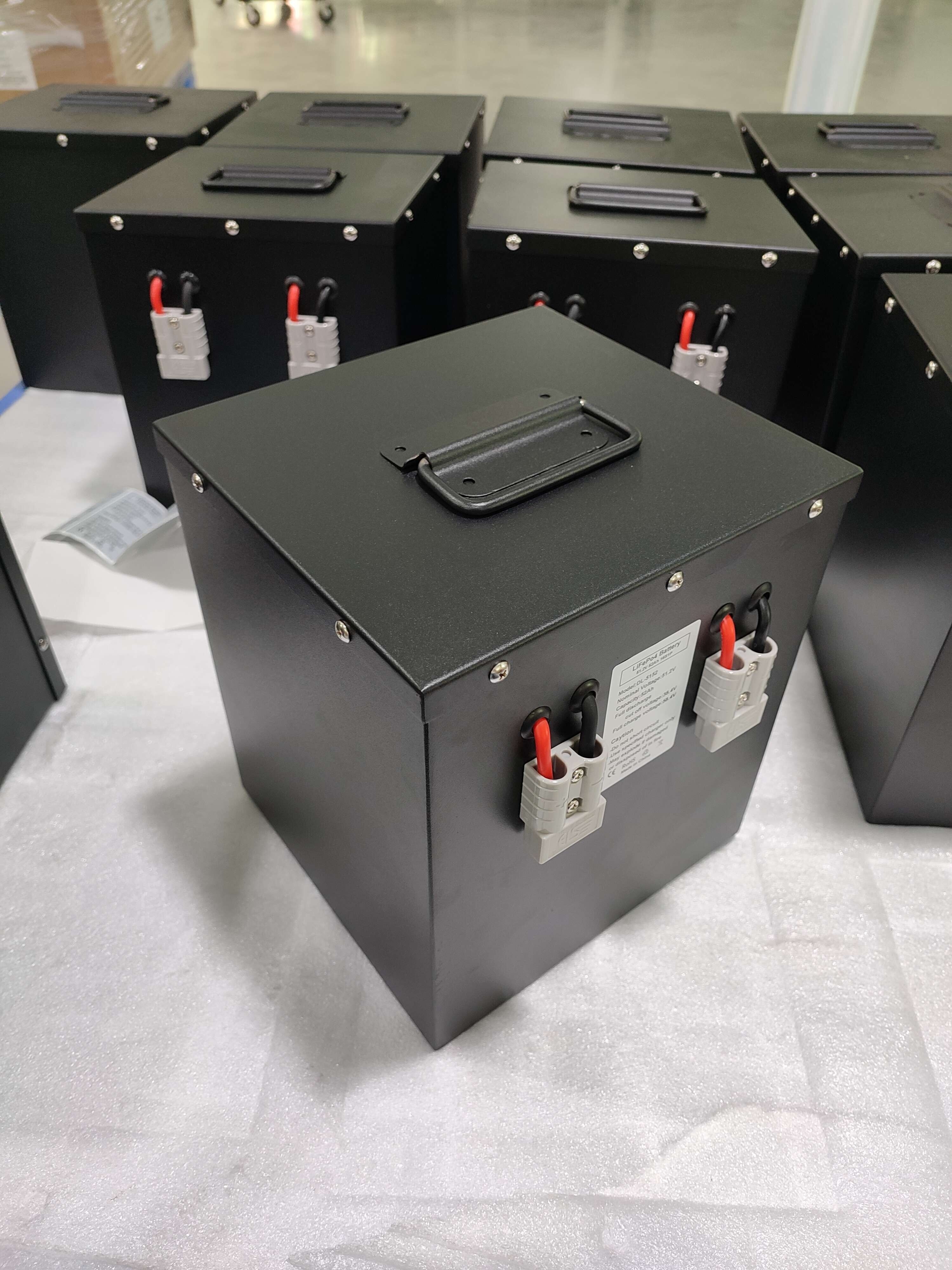

16S1P LiFePO4 lithium battery pack 48v 51.2v 50Ah for electric rickshaw pedicab
bybattshop
* DL-5152 , 16S1P
* Several Times the Life Cycle of Equivalent Lead Acid Battery
* Advanced Battery Management System (BMS)
* Providing short circuit, over current, over -charge, over-discharge protection
* Grade A battery cells
* Much lighter than Lead Acid and AGM Batteries
Product Description
51.2V 50Ah Lifepo4 Lithium battery
* DL-5152 , 16S1P
* Several Times the Life Cycle of Equivalent Lead Acid Battery
* Advanced Battery Management System (BMS)
* Providing short circuit, over current, over -charge, over-discharge protection
* Grade A battery cells
* Much lighter than Lead Acid and AGM Batteries
Specification
Model | 5152 51.2v 50Ah 16S1P | ||
Nominal Voltage | 51.2V | ||
Nominal Capacity | 50Ah | ||
End of charge Voltage | 58.4V | ||
End of charge Current | 100mA | ||
End of discharge Voltage | 38.4V | ||
Charge Method | 0.2C (0.5A) CC/CV | ||
Max.Continuous charge current | 25A | ||
Nominal Discharge Current | 50A | ||
Max. Pulse Discharge Current | 100A/10S | ||
Weight | 20Kg | ||

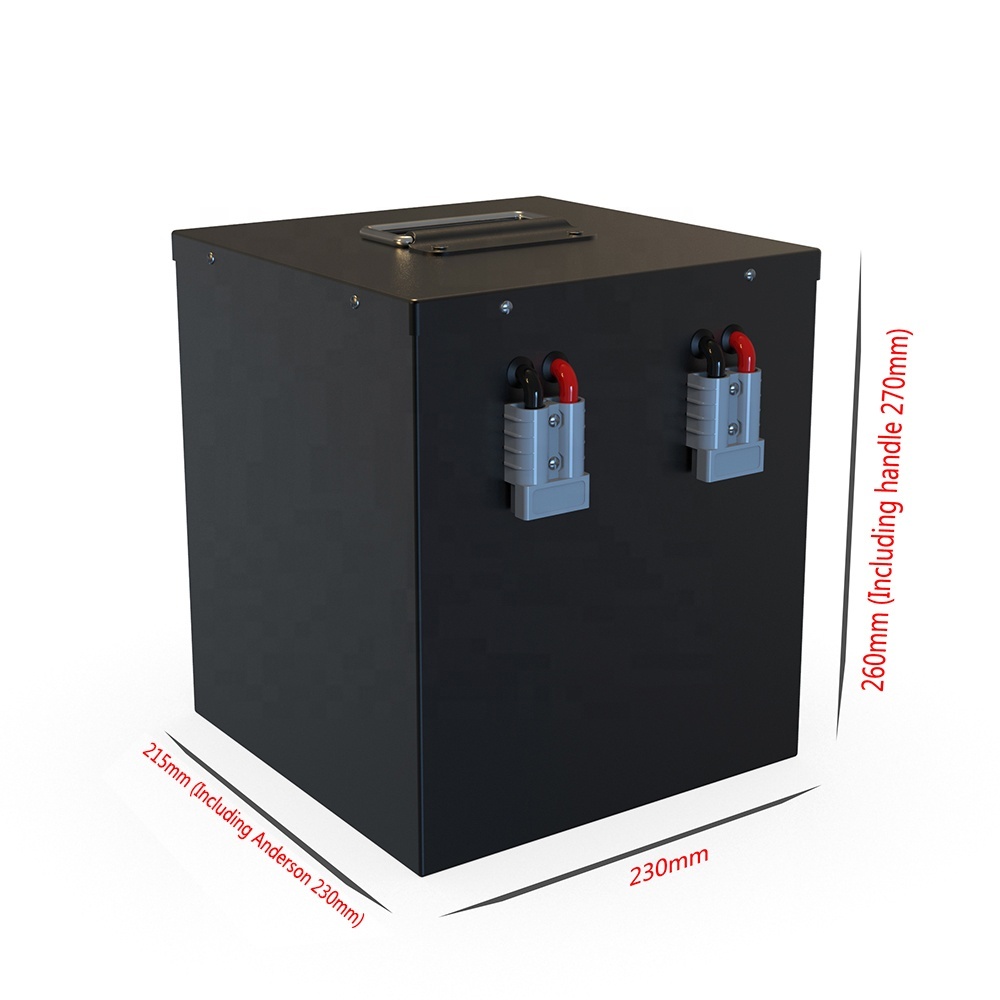

Size | 230 x 215 x 260 mm | ||
Operating Temp | Charge | 0~45℃ | |
Discharge | -10~55℃ | ||
Capacity@1C rate 0.2C | ≥50Ah | ||
Cycle Life | 3000 times(Cycle @RT, 1C rate,85%D\OD) | ||

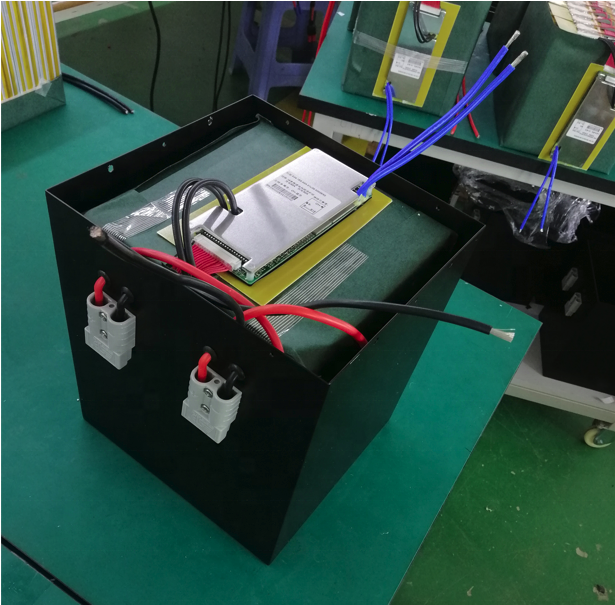

This 51.2v 50Ah LiFePO4 lithium battery is consist of 3.2v pouch type lifepo4 battery cells , built-in 50A BMS
Built-in 50A battery management system,
BMS protection.functions:
Built-in 50A battery management system,
BMS protection.functions:
1. over-charge protection.
2. over-current protection.
3. over-discharge protection.
4. short circuit protection.
5. over power protection.
6. over-temperature protection.
2. over-current protection.
3. over-discharge protection.
4. short circuit protection.
5. over power protection.
6. over-temperature protection.
- Battery Type:
- LiFePO4
- Model Number:
- 5150
- Place of Origin:
- Guangdong, China
- Product Name:
- 51.2v 50Ah LiFePO4 battery
- Nominal Voltage:
- 51.2V
- Size:
- 230 x 215 x 260mm
- Configuration:
- 16S1P
- Charging Voltage:
- 58.4V
- Cycle life:
- 3000 Times
- Charging current:
- Max. 25A
- BMS:
- 50A
- Battery cell:
- 3.2V 50Ah lifepo4 cell
- The discharge rate:
- 1C~3C
