Low Speed Vehicles Rechargeable Lithium Ion LiFePO4 Battery 24V 36V 48V 60V 72V 100AH Custom Golf Cart AGV Truck Boat
bybattshop
Details Images
Flexible Use:
BMS（Battery Management System）
It is an electronic system allowing the control and the charge of the different elements of a storage battery. The BMS built into each battery ensures that the battery is protected from improper handling. It switches the battery in case of undervoltage or overload, and turns on automatically as soon as the problem is fixed.
* Protection of the cell against undervoltage by cutting the load over time.
* Protection of the cell against overvoltages by reducing the charging current or by stopping the charging process.
* System shutdown in case of overheating.
* Battery charging is stopped at low temperature.
* Protection of the cell against overvoltages by reducing the charging current or by stopping the charging process.
* System shutdown in case of overheating.
* Battery charging is stopped at low temperature.

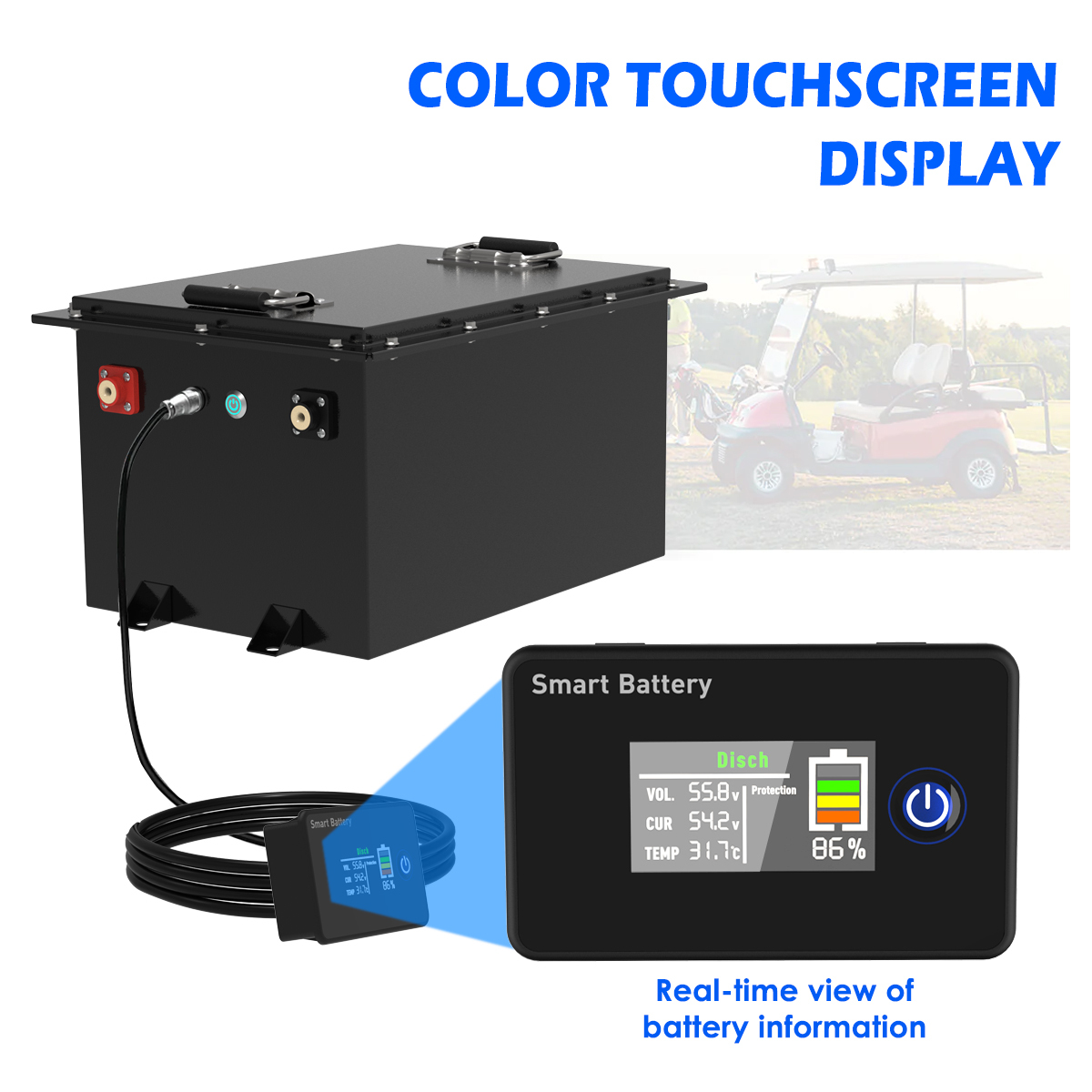

Support IOS and Android Phone APP Monitoring
You can use your phone to connect the battery to reach more information. Such as Voltage, Capacity, Current, Temperature, Cycleand so on.
WHAT BATTERY CELL WE USE
As a over 12-year-old store engaged in the battery business, we are responsible for our customers and our brand. Using only A grade cells, the cycle life can up to 6000-8000 times: 10AH 20AH 30AH 40AH 50AH 60AH 100AH 200AH 280AH 300AH...
1> Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing, and can be assembled directly.
2> Through series certifications and testing, quality assurance.
3> There are two types of pouch cells and prismatic cells.
The pouch cells: lighter, cheaper, and easy to customized in special sizes
The prismatic cells: not easily deformed , stable performance, mature market, more popular at present.
3> There are two types of pouch cells and prismatic cells.
The pouch cells: lighter, cheaper, and easy to customized in special sizes
The prismatic cells: not easily deformed , stable performance, mature market, more popular at present.
Products Description
Lithium Iron Phosphate(LiFePO4) Battery 51.2V 105AH | ||||||
Item | Specification | Note | ||||
Battery Pack | Nominal Voltage: | 48V(51.2V) | Support Customized 6.4V-96V | |||
Nominal Capacity: | 105AH | Any capacity can be customized | ||||
End of Discharge Voltage: | 28.4V | |||||
End of charge Voltage: | 58.4V | |||||
Max.Cont. Charge Current: | ≤100A | Free Customization Service | ||||
End of Charge Current: | 100mA | Free Customization Service | ||||
Nominal Discharge Current: | <100A(Safe) | Free Customization Service | ||||
Max. Pulse Discharge Current: | 200A(10S) | Free Customization Service | ||||
Internal Resistance: | ≤20mΩ | |||||
Operating Charge Temperature: | 0～45℃ | |||||
Operating Discharge Temperature: | -20～60℃ | |||||
Storage Temp.(60-80% SOC Storage): | -10～45℃ | |||||
Charge Method: | CC/CV | |||||
BMS: | Built in BMS | Power BMS | ||||
Dimension: | 470*334*247mm | |||||
Weight: | 42KG | |||||
Cycle Life: | 6500+ | 1C rate | ||||

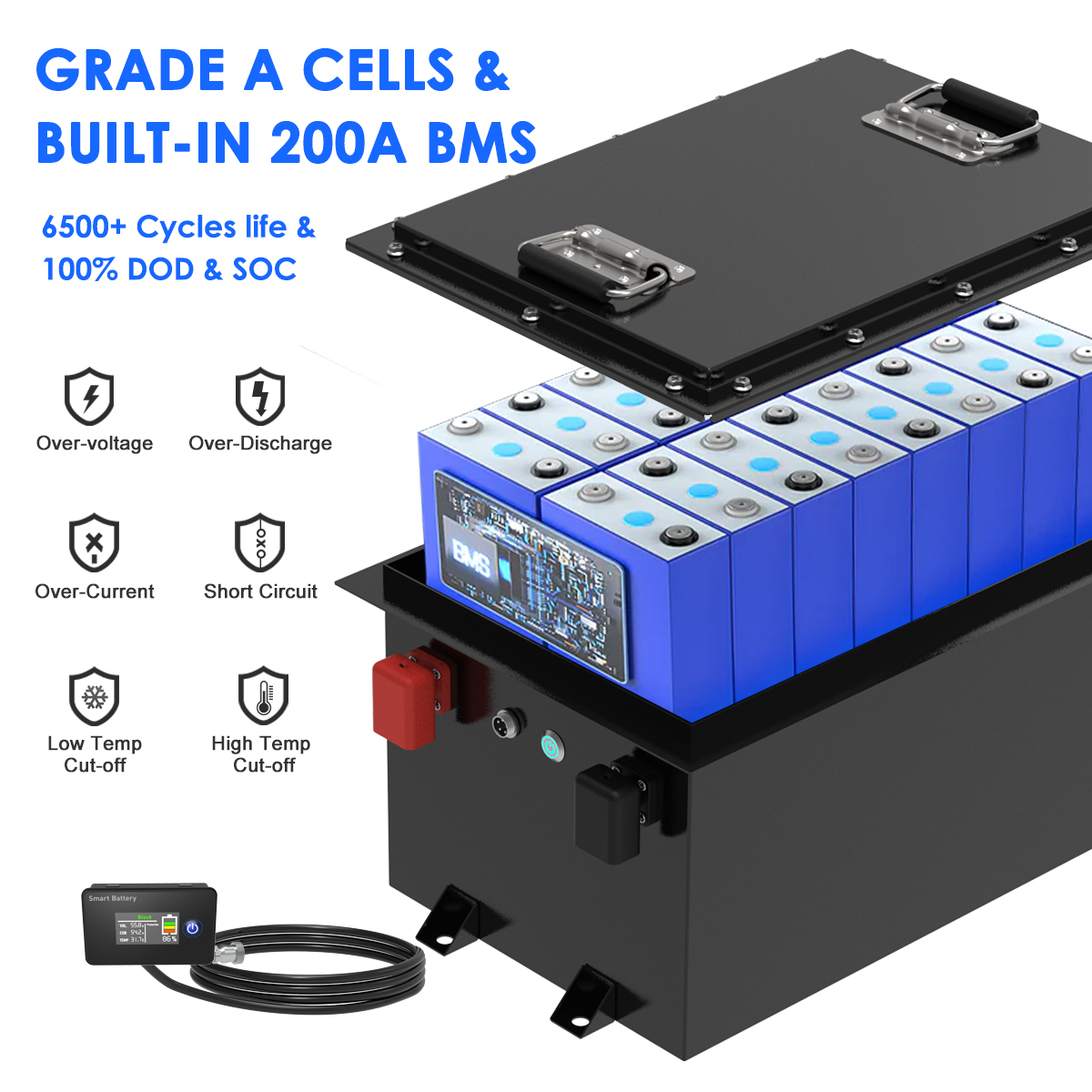

Battery Cell Used | Prismatic LiFePO4 Cell | 105AH 4S1P | Grade A, Brand New, High Quality 2C Discharge | |||
BMS | Charge Protection, Over charge Protection, Over Discharge Protection, Short Circuit Protection | Support Customized Extra Function | ||||
LED Indicator | With extra long cables for vehicles, touchscreen to display battery voltage, capacity, current... | / | ||||
Metal Case, Stainless Steel Case | / | |||||
IP Grade: | IP65 | |||||
Warranty | 5 YEARS WARRANTY | |||||
Battery Standard | CE-EMC, UL1642, IEC62619, REACH, RoHS, UN38.3, MSDS | |||||
- Model Number:
- LFP51105
- Battery Size:
- 470*334*274mm
- Place of Origin:
- Guangdong, China
- Weight:
- 42KG
- The charging ratio:
- 0.2C-0.5C
- The discharge rate:
- 0.5C-0.8C
- Storage Type:
- 25℃
- Anode Material:
- LFP
- Application:
- Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts, Golf Cart, Marine, Boat, AGV, Forklift, Truck, E-rickshaw
- Product name:
- 48V 100AH Lithium Iron Phosphate LiFePO4 Battery
- Voltage:
- 51.2V ~ OEM
- Capacity:
- 105AH ~ OEM
- Warranty:
- 10 Years
- Keywords:
- 51.2V 100AH Lithium Ion LiFePO4 Battery
- Color:
- Black ~ OEM
- Battery type:
- Lithium Iron Phosphate(LiFePO4) Battery
- Certification:
- CE/RoHS/UN38.3/MSDS/IEC/REACH
- OEM/ODM:
- Accepatable
