FS waterproof 60v 60ah lithium ion bateria BMS li ion for 6000W Tricycle scooter motorcycle Lead acid replacement +10A charger

Parts included:

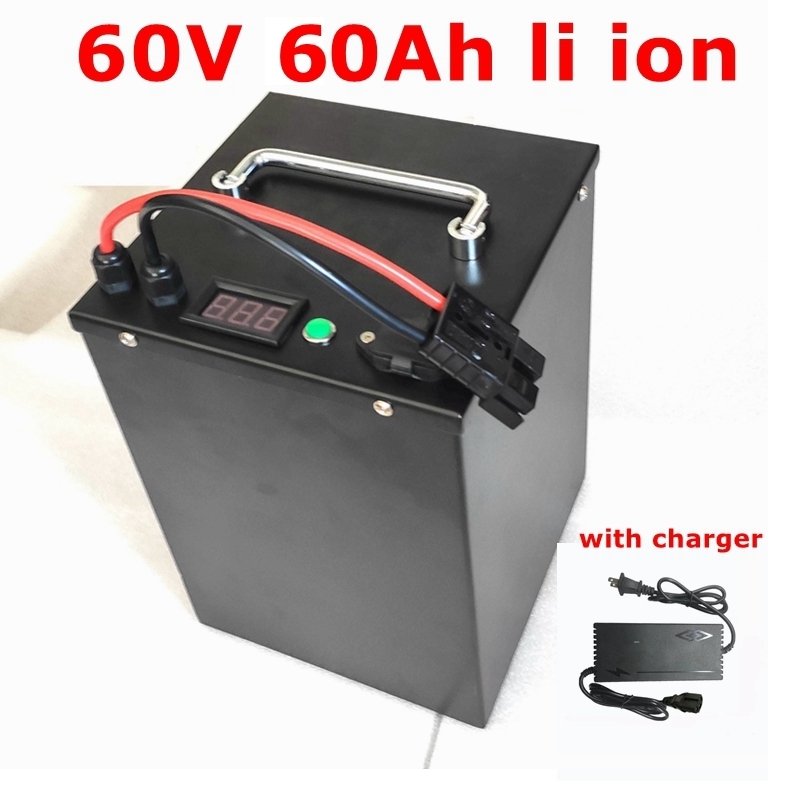

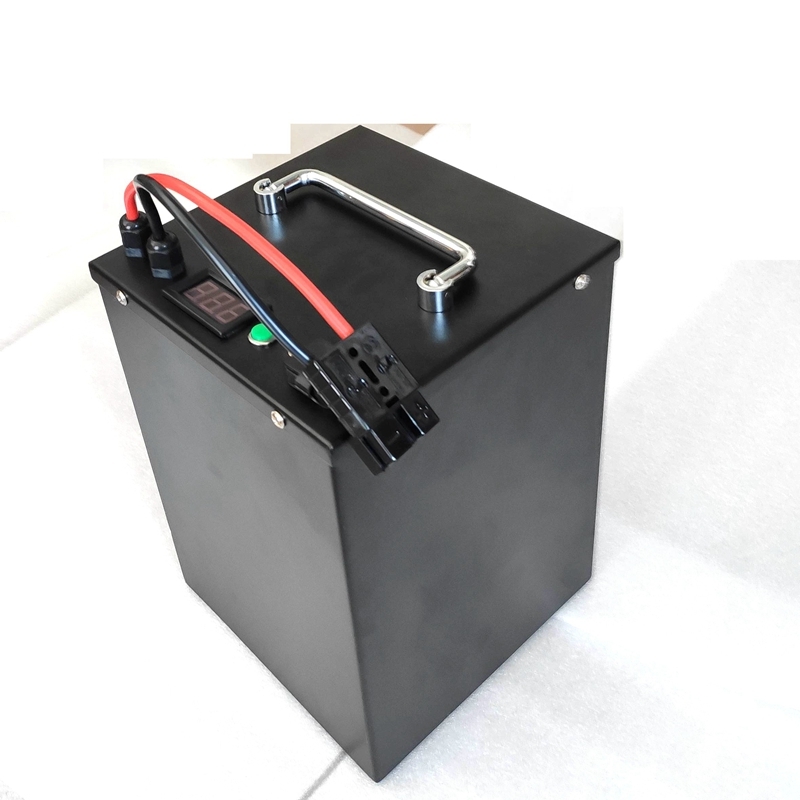

1.60v 60ah Lithium ion Battery pack with high quality BMS board build in and free case.

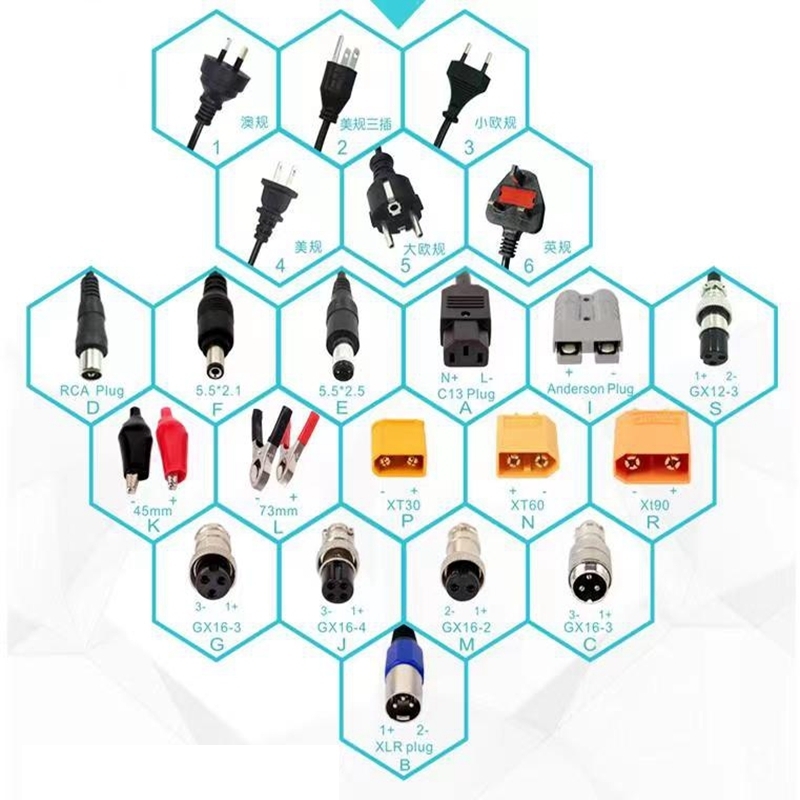

2. 67.2V 10A Charger(With EU/US/UK/AU AC Charger plug you can choose )

Remark:

We offer lithium, lifepo4 and ni-mh battery, accept customized battery pack, we can't update all items here. If any battery you want, please take it easy to contact with me tell me the capacity, voltage and size you want, thanks.

No. Item Specification

1 Charge cut-off voltage DC 67.2V

2 Nominal voltage 60V

3 Nominal capacity 60Ah

4 Continuous discharge current 100A(adjustable)

5 Charge current Standard charge: 0.25C Approx 5 Hour Rapid charge: 0.5C Approx 2.5 Hour 6 Standard Charging method 0.2 CC(constant current) charge to 73V, then CV(constant voltage 58.4V) charge till charge current decline to less than 0.02C

7 Max. charge current 30Acan be customize

8 Max. discharge current can be customize

9 Max.Pulse Current can be 200Acan be customize

10 Discharge cut-off voltage 40V

11 Cell 3.7V Lithium polymer

12 Operating temperature Charging: 0°C - 45°C Discharging: -10°C- 60°C 13 Storage temperature -10°C to + 45°C

14 Battery Weight Approx.20KG

15 Battery Dimension Customizeable

16 Battery outgoing voltage 40-67.2V

17 BMS built in Yes

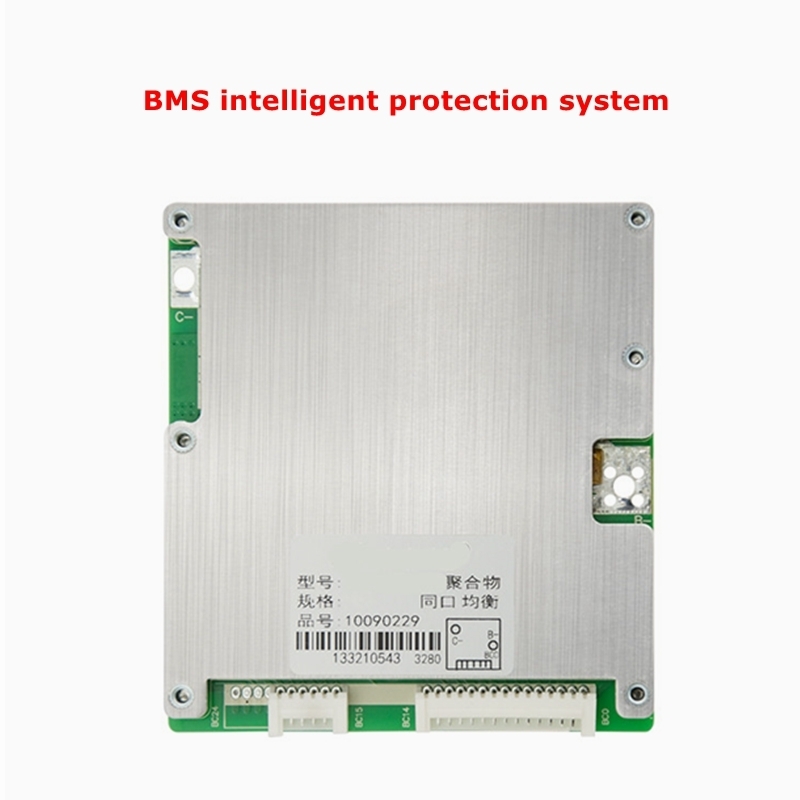

BMS ( Battery Management System )

BMS is higher level BMS, which is safety control and management system to monitor battery status in order to make battery better working and lengthen battery life time objectively. BMS is mainly used in high capacity li-ion/li-polymer/lifepo4 battery packs. BMS is advanced integration of management, protection, communication and self-diagnose and cell balancing.
Major functions:

1.     Overcharge protection

2.     Overdischarge protection

3.     Overcurrent protection

4.     Overheat protection(NTC)

5.     Short circuit protection

6.     Temperature sensing

7.     Cell monitoring & balancing

8.     Communication interface

9.     Self-diagnose

10.   Power gauge
