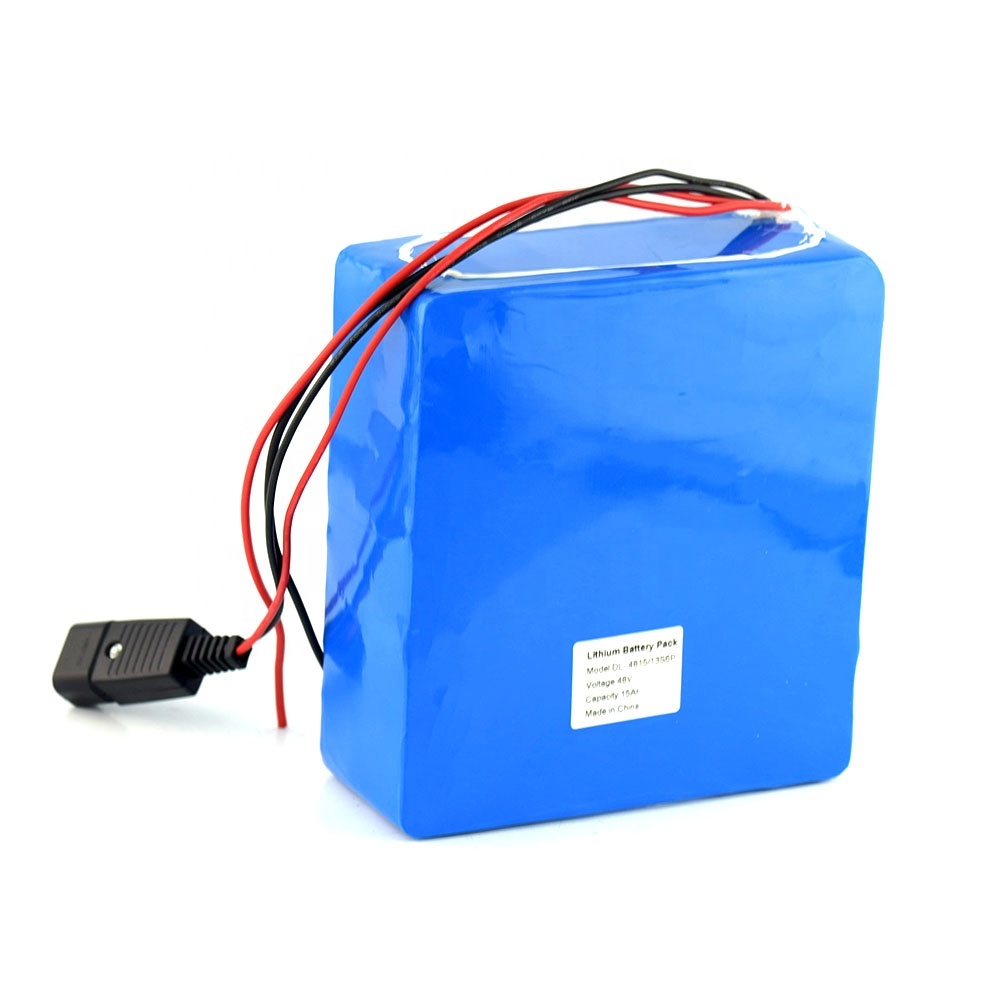

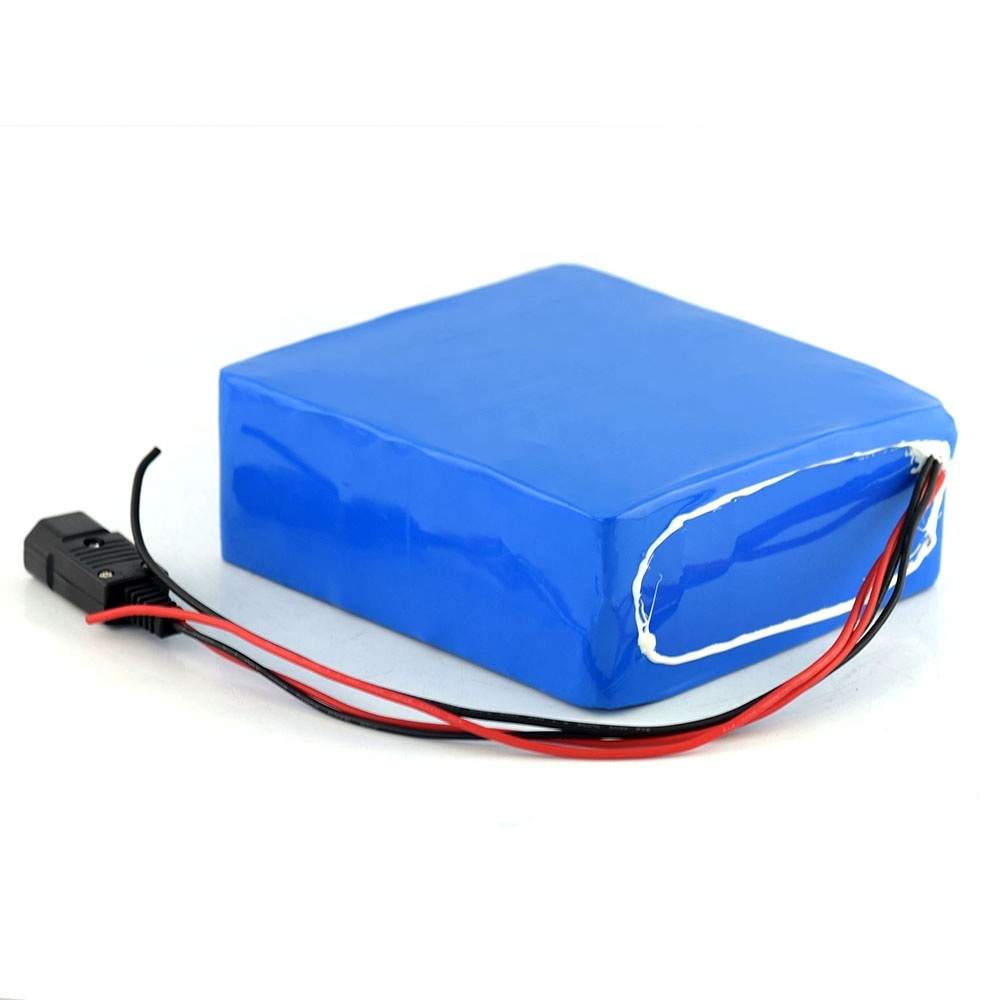

high quality wholesale fast charging 48v lithium battery pack for electric bike /electric scooters
bybattshop
Production Description
Nominal voltage | 48V |
Nominal capacity | 15Ah |
Battery cell | Grade A Chinese 18650 lithium ion battery cells |

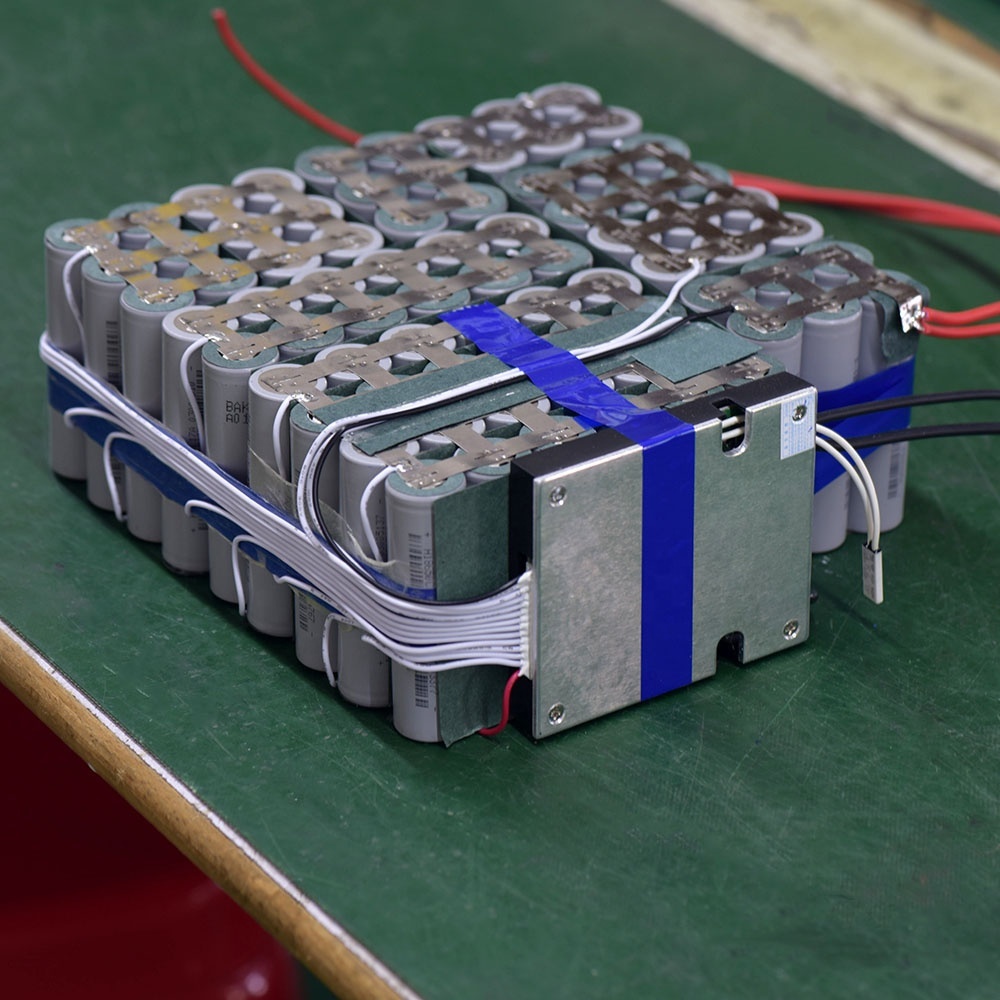

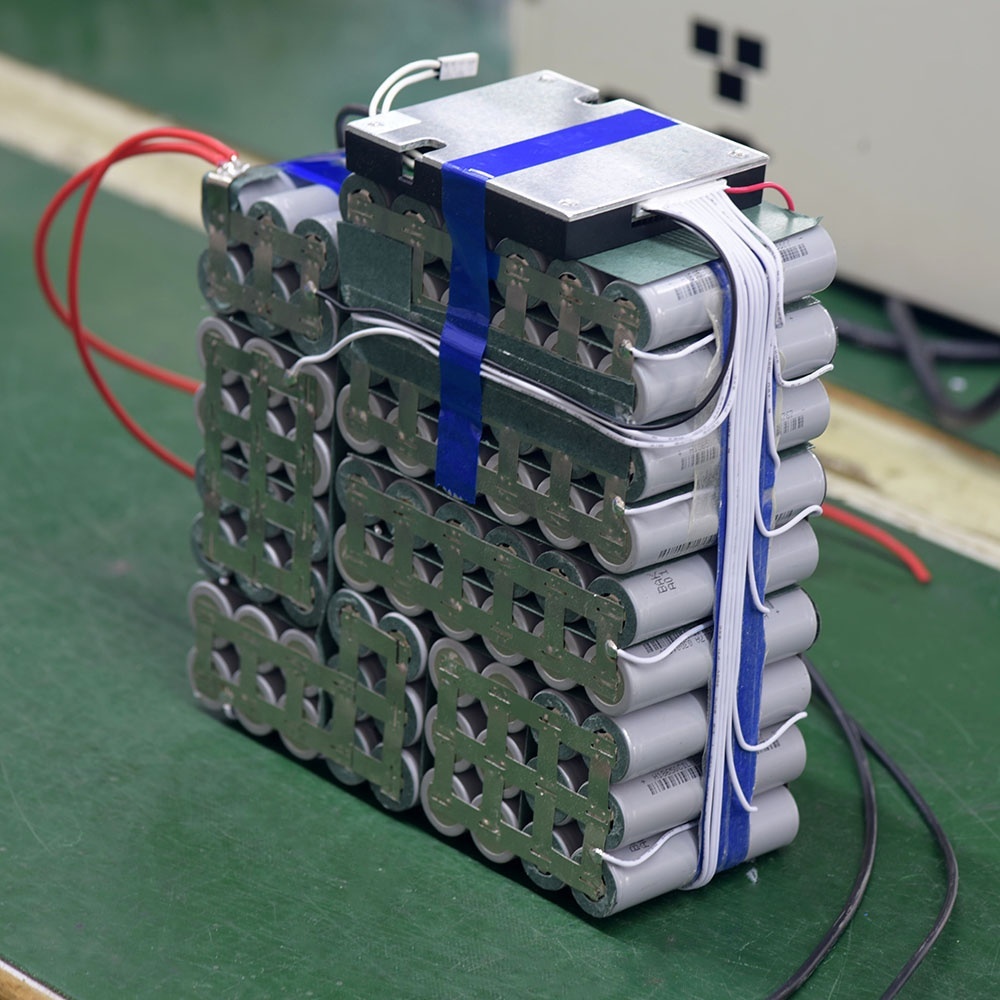

Battery configuration | 13S6P(13 series,6 parallel) |

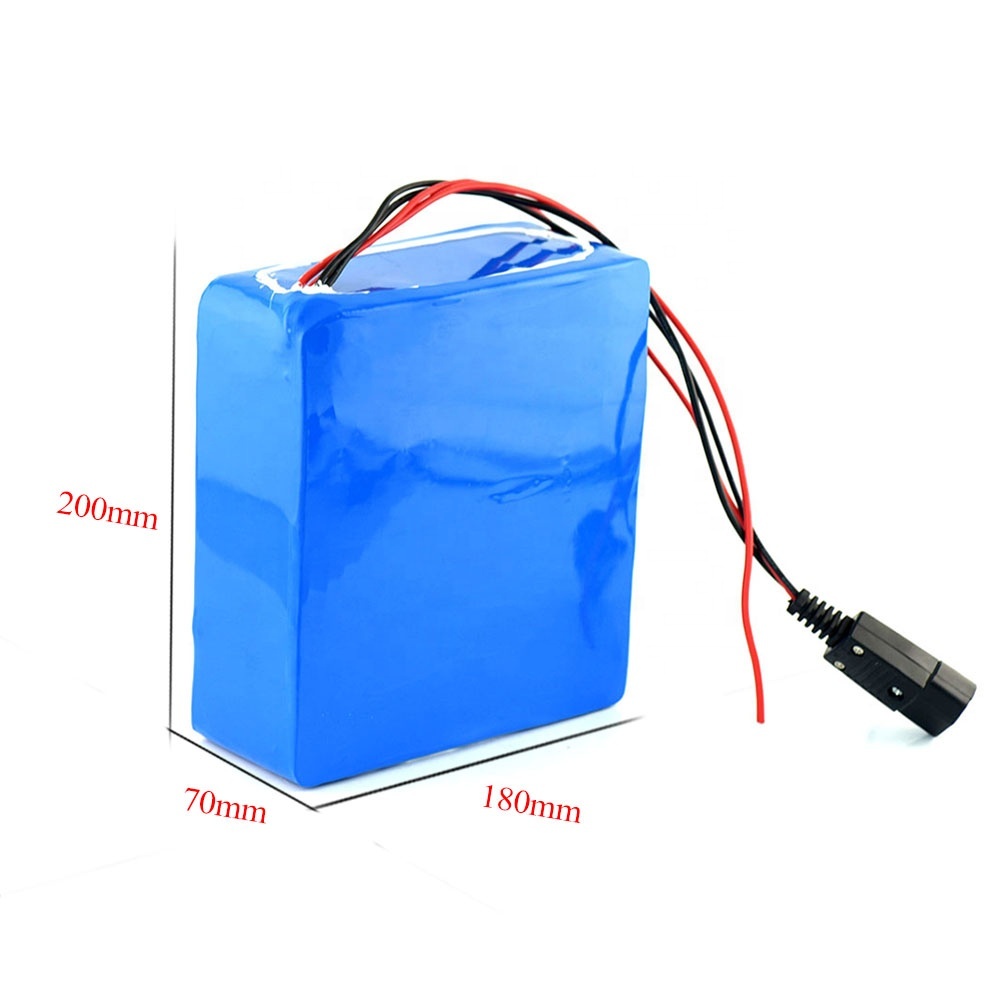

Dimension | 180*70*200mm or customized |
End of charge voltage | 54.6V |
End of discharge voltage | 35.75V |
Standard charge current | 3A |
Max continuous charge current | 7A |
Continuous discharge current | 15A or cutsomized |
Peak discharge current | 30A |
Charging plug | 3pin plug |
Discharging connector | cables |
Case type | PVC shrink |
Net weight | 4.2kg |
Charge temperature | 0～45℃ |
Discharge temperature | -10～60℃ |
Warranty | 12 months |
Cycle life | 500-800 times,80% DOD |
BMS protection | over-charge,over-discharge,over-current and short circuit |
- Model Number:
- 4815
- Battery Size:
- 180*70*200mm
- Place of Origin:
- Guangdong, China
- Weight:
- 4.2kg
- The charging ratio:
- 0.2C
- The discharge rate:
- 3C
- Storage Type:
- dry and cool place
- Anode Material:
- NCM
- Application:
- Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
- Battery type:
- 18650 Rechargeable Li-ion
- Product name:
- 48V 15Ah rechargeable lithium battery pack
- Warranty:
- 12 Months
- Cycle life:
- 500-1000 Times
- Certification:
- CE/UN38.3/MSDS
- Package:
- Individual Box Package
- Charging voltage:
- 54.6V
- Protection:
- Built-in BMS
- Max discharge current:
- 30A
- Payment:
- Credit Card.Paypal.TT.Western Union
