Rechargeable 60v 12ah lithium battery for electric scooter
Rechargeable 60v 12ah lithium battery for electric scooter
Specification
|
Project |
Characters |
Remarks |
|
Capacity |
Minimum 12Ah Typical 12Ah |
0.2C constant charge until 54.6V,then 54.6V constant charge until charging current ≤0.2A,0.2C discharge until capacity at 39V |
|
Working voltage |
60V |
|
|
Max charging cut off voltage |
67.2V |
|
|
Min discharging cut off voltage |
67.2V |
|
|
Max constant charging current |
12A |
|
|
Max constant discharging current |
12A |
|
|
Working temperature range |
charing temperature 0~45℃ discharge temperature –20~60℃ |
|
|
Storage temperature |
within one month -20~45℃ within 6months -20~35℃ |
|
|
Weight |
3.3Kg |
|
|
Storage voltage |
60V -62.0V |
similar |
|
Environmental requirement |
meet RoHS standard |
|
1)Cycle life :more than 500times cycle life
2)Application :electric vhicle,like electric bike,scooter,etc
3) Powerful energy :as the high voltage and light weight ,Motors acceleration speed performance are very good
4) Energy density per volume are higher
5) Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection fuctions .
6 ) It can run well under different temperature environment condition
7)No memory effects.
8)10Ah, 11Ah, 12Ah, 15Ah, 24V, 36V, 48V are available Customizes shapes, capacity, and voltage are accepted

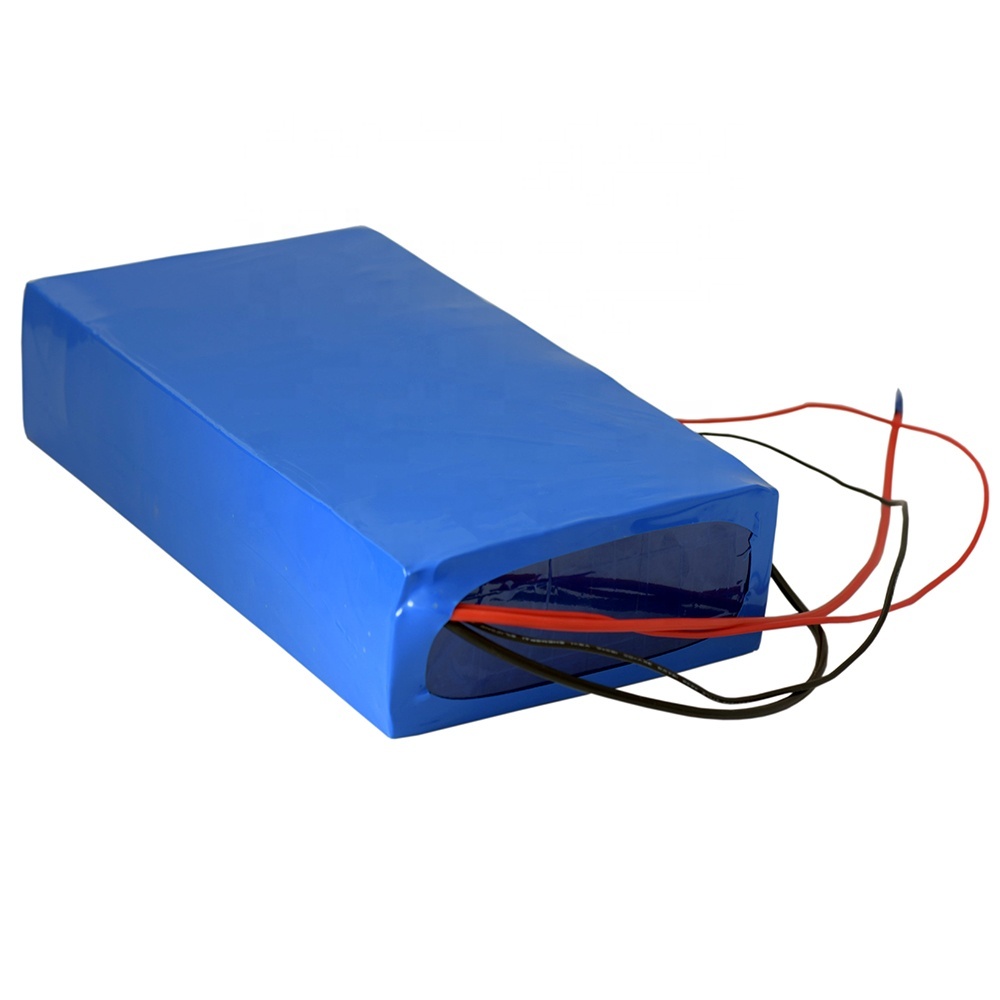

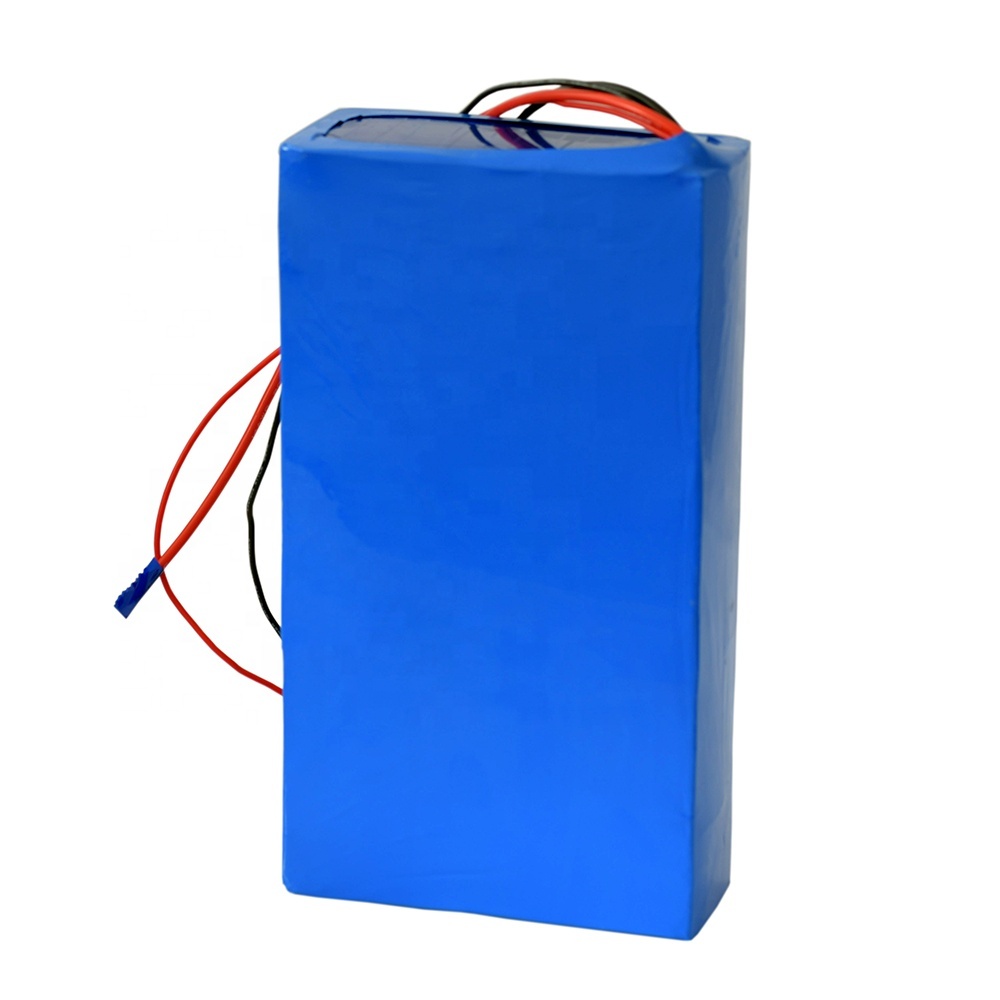

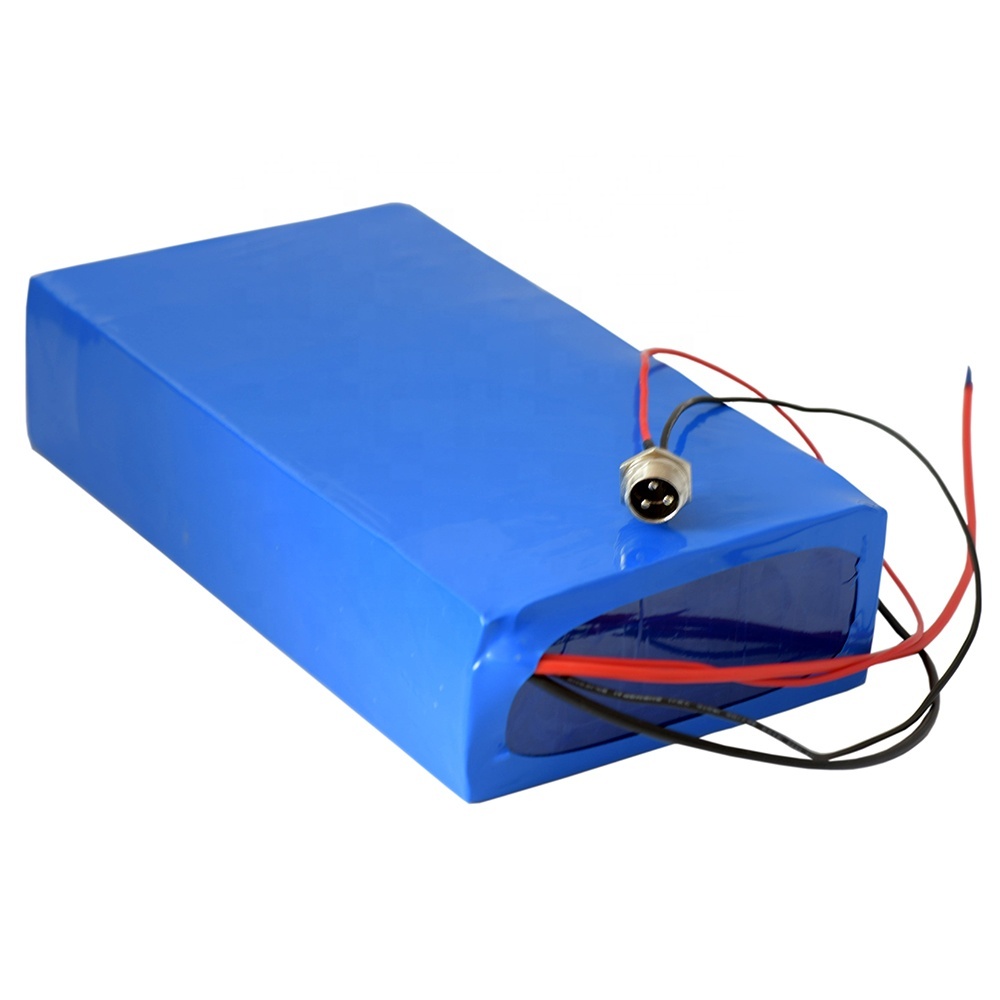

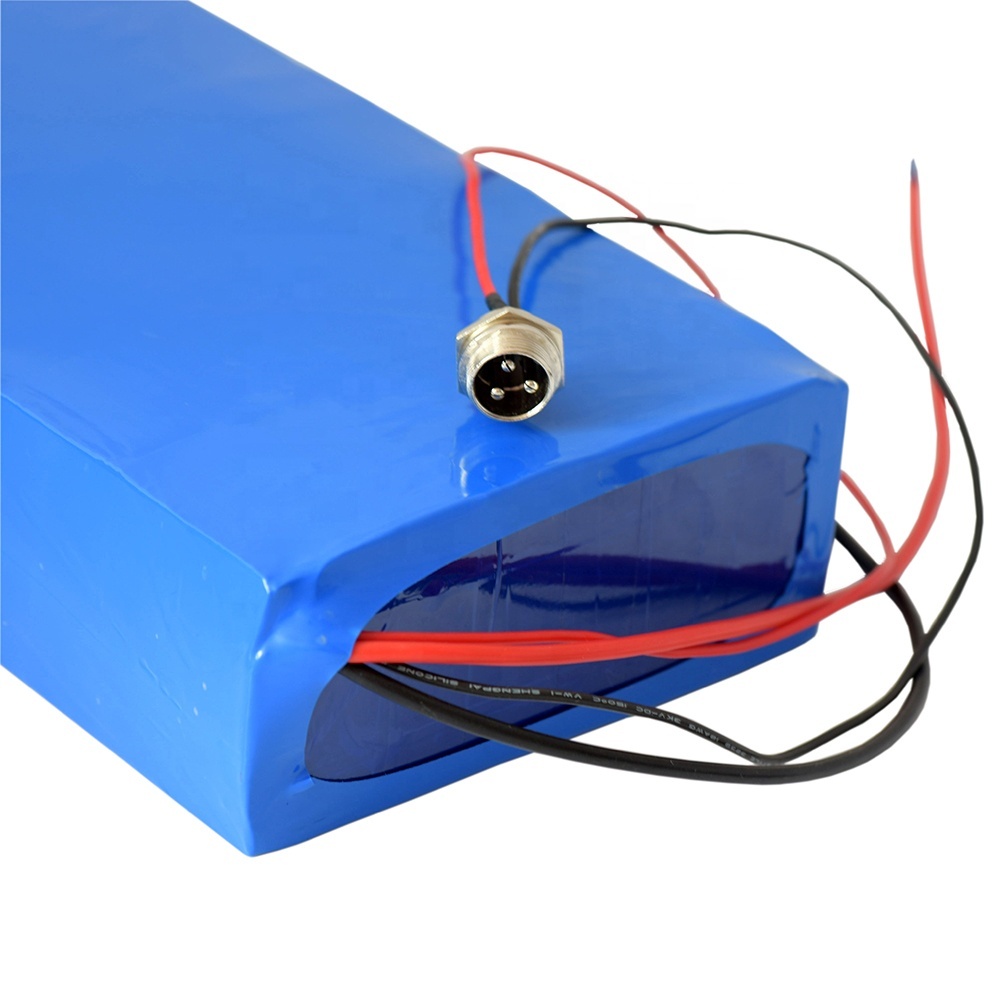

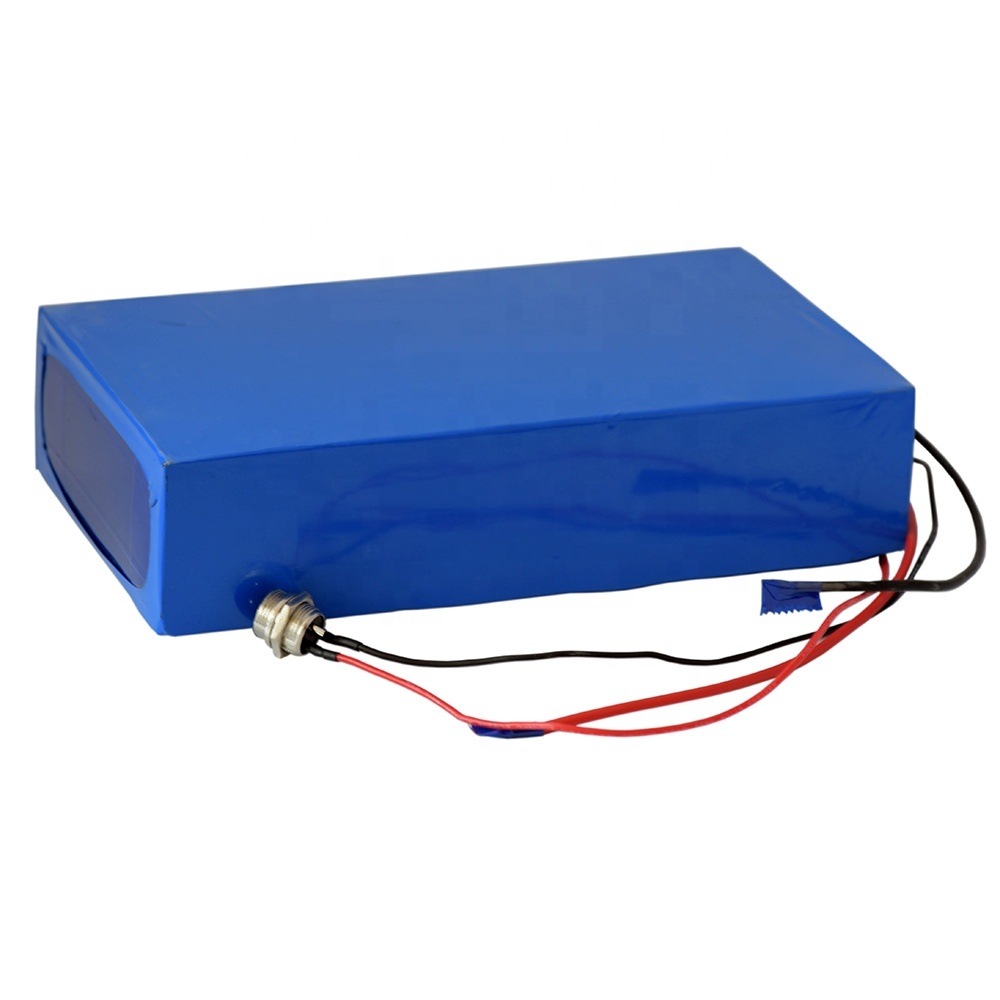

Detailed Pictures

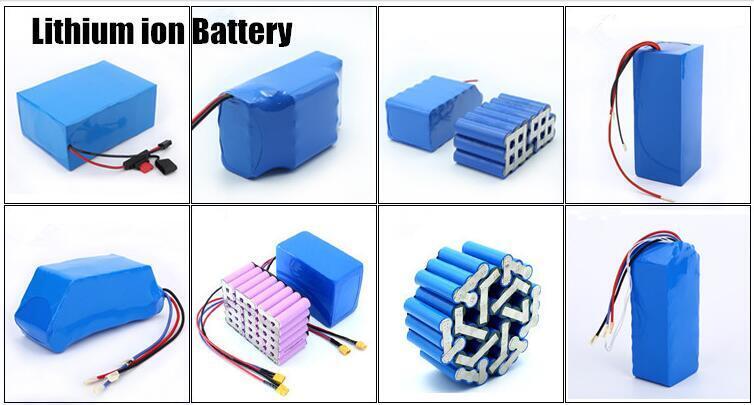

Customized battery pack
Package
Payment and Shipping
1) We accept Paypal,T/T,Western Union or L/C .
2) Full order timeline about 7-10 working days after payment or deposit conform.
3) Shipping: DHL,Fedex TNT(only to certain area).
4) Tracking Number will be provided
- Model Number:
- 6012
- Battery Size:
- 18650
- Place of Origin:
- Guangdong, China
- Weight:
- 4kg
- The charging ratio:
- 0.5C
- The discharge rate:
- 3C
- Anode Material:
- Other
- Application:
- Home Appliances, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs
- Product Name:
- Rechargeable 60v 12ah lithium battery
- Battery cell:
- 3000 18650 li ion cell
- Composed Type:
- 16S4P
- Voltage:
- 60V
- Capacity:
- 12aH
- Protection:
- Built-in 16s 20a Smart BMS
- Charge Voltage:
- 67.2V
- Discharge Current:
- 20A Continuous
- Size:
- 255*140*60mm
- Cycle life:
- about 500times
